Omniflow PRO: 4-Way Smart Air Dispersion for Total Comfort
Product Specifications
| Attribute | Value |
| Fan Motors Type | DC |
| Color | White |
| Function | Cooling/Heating |
| Power Supply | 380v |
| Indoor Unit Dimensions | 37.4 X 12.6 X 8.9 Inches |
| Energy Star Certified | Yes |
| Outdoor Unit Dimensions | 33.5 X 28.7 X 12.6 Inches |
| Power | 2500w |
| Multi Head Qty | Max 5 Indoor Unit |
| Power Source | Electric |
| Mounting Type | Split |
| Refrigerant Type | R-410A |
| Weight | Indoor: 22.5 lbs, Outdoor: 77.2 lbs |
| Installation Type | Wall Mounted |
| Dimensions | Indoor: 33.1 x 10.6 x 8.9 inches, Outdoor: 31.5 x 11.6 x 21.5 inches |
Product Overview
Introducing the Hisense Cassette, a premium air conditioning solution engineered to deliver powerful, uniform cooling and heating for large spaces. Designed with cutting-edge inverter technology, this cassette unit ensures energy efficiency while maintaining consistent temperatures, making it perfect for offices, commercial buildings, and spacious interiors.
Equipped with smart controls, the Hisense Cassette allows seamless operation via mobile apps or central systems, enabling easy temperature adjustments and scheduling to suit your needs. Its sleek, low-profile design blends effortlessly with ceilings, saving space without compromising on performance.
Built with Hisense's renowned reliability, this cassette AC features advanced air purification filters to enhance indoor air quality, removing dust, allergens, and odors. Experience quiet operation and long-lasting durability—ideal for creating a comfortable environment in any setting.
Compact Design
The compact design with body thickness of only 215mm reduces the ceiling height. The compact design makes the most slim design in class.

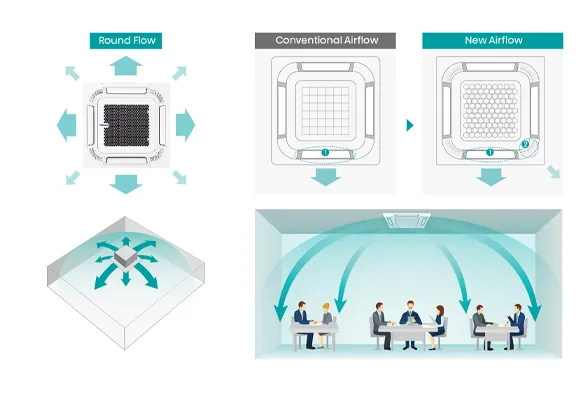

Round Flow
Round flow air supply optimizes room airflow, ensuring that the comfortable airflow goes to every corner and that the temperature perfectly balances the integral space.

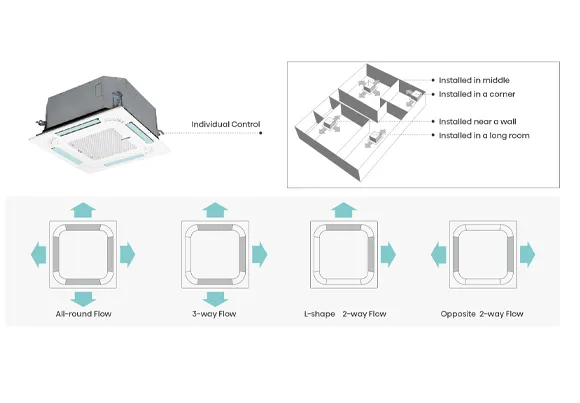

Individual Airflow Control
Independent airflow control perfectly caters to the space structure and feelings of different people.
- We can achieve individual airflow control by wired controller YXE-E01U(E) or remote controller RCH-RVD01.

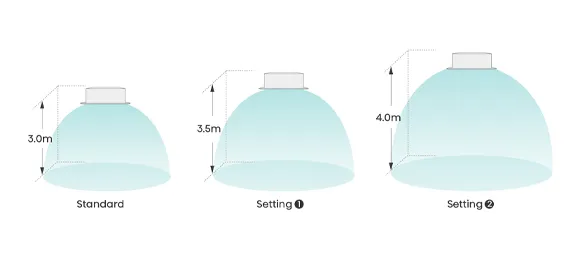

High Ceiling
When the ceiling is high, the unit parameters can be set by the wired controller or compensate the installation height. Even in spaces with high ceilings, a comfortable airflow is carried down to the floor level.

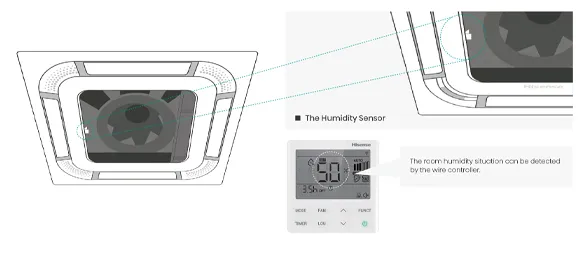

Humidity Control
The humidity sensor is standard for compact Cassette. In dry mode, the room relative humidity can be displayed by wired controller YXE-E01U(E).
Technical Specifications
| Power form | AC 1Φ, 220V~240V/50Hz/60Hz |
| Refrigeration | 2.8kW |
| Heating | 3.2kW |
| Noise | 30/28/28/27/26/26 |
| Air volume | 15.0/12.8/12.0/10.8/10.0/8.8 |
| Weight | 20kg |
| Size | 238*840*840 |
